最近准备弄一个springBoot电商秒杀的demo项目，在搭建后台框架时，非关系型数据库准备整合redis，之前用的是单机版，考虑到是电商项目，后面用jmeter做压力测试效果可能不好，于是想试试redisCluster集群模式，看看并发qps变化效果，在网上看了很多博客吸取到了很多干货，但是很多都不全只是写了代码这块怎么整合的例子，并没有指出redis部署集群的教程，所以摸索成功之后觉得有必要分享出来整套的东西，让整合的人少踩坑，废话不多说下面开始。

1.在windows上进行redis集群部署。

参考这位兄弟的帖子:https://blog.csdn.net/zsg88/article/details/73715947点击打开链接

帖子里面Ruby 环境安装的地址已经失效，我是在这里下载安装的

点击打开链接

另外如果项目里配置的redis地址用电脑ip的话，需要去redis安装目录下的redis.windows.conf配置文件里更改一下默认绑定的ip，改掉默认bind 127.0.0.1为bind 0.0.0.0，这样的话redis就可以供别的机器访问了。

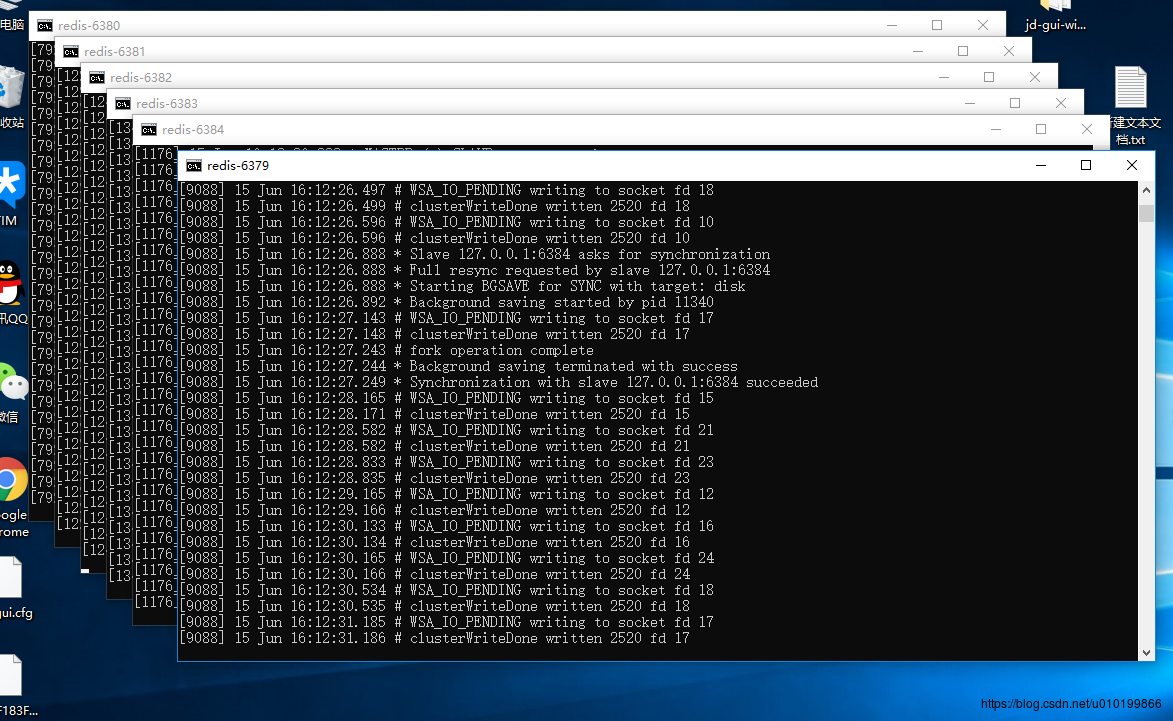

部署完成最终效果图

2.springBoot架构整合

①springBoot架构创建（这里不做过多描述，推荐使用idea一键创建）。

②pom文件增加依赖。

<dependency>  <groupId>org.springframework.boot</groupId>  <artifactId>spring-boot-starter-redis</artifactId> </dependency>  <dependency>  <groupId>redis.clients</groupId>  <artifactId>jedis</artifactId>  <version>2.9.0</version> </dependency>

③.配置application.yml或application.properties配置文件

spring: redis:  cache.clusterNodes: 127.0.0.1:6379,127.0.0.1:6380,127.0.0.1:6381,127.0.0.1:6382,127.0.0.1:6383,127.0.0.1:6384 cache.commandTimeout: 5000

④.创建RedisProperties装载配置到对象

package com.springboot.buying.snapup.utils.redis;  import org.springframework.boot.context.properties.ConfigurationProperties; import org.springframework.stereotype.Component;  /**  * @Author: nanjunyu  * @Description:读取redis配置信息并装载  * @Date: Create in 2018/6/14 16:16  */ @Component @ConfigurationProperties(prefix = "spring.redis.cache") public class RedisProperties { private int expireSeconds;  private String clusterNodes;  private int commandTimeout;   public int getExpireSeconds() { return expireSeconds;  } public void setExpireSeconds(int expireSeconds) { this.expireSeconds = expireSeconds;  } public String getClusterNodes() { return clusterNodes;  } public void setClusterNodes(String clusterNodes) { this.clusterNodes = clusterNodes;  } public int getCommandTimeout() { return commandTimeout;  } public void setCommandTimeout(int commandTimeout) { this.commandTimeout = commandTimeout;  } }

⑤.创建JedisClusterConfig读取读取配置信息

package com.springboot.buying.snapup.utils.redis;  import org.springframework.beans.factory.annotation.Autowired; import org.springframework.context.annotation.Configuration; import redis.clients.jedis.HostAndPort; import redis.clients.jedis.JedisCluster;  import java.util.HashSet; import java.util.Set;  /**  * @Author: nanjunyu  * @Description:  * @Date: Create in 2018/6/14 16:28  */ @Configuration public class JedisClusterConfig { @Autowired  private RedisProperties redisProperties;   public JedisCluster getJedisCluster(){ String [] serverArray=redisProperties.getClusterNodes().split(",");  Set<HostAndPort> nodes=new HashSet<>();   for (String ipPort:serverArray){ String [] ipPortPair=ipPort.split(":");  nodes.add(new HostAndPort(ipPortPair[0].trim(),Integer.valueOf(ipPortPair[1].trim())));   } return new JedisCluster(nodes,redisProperties.getCommandTimeout());  } }

⑥.创建RedisClientTemplate接口进行set get测试这里简单写了两个方法，自行修改

package com.springboot.buying.snapup.utils.redis;  import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Service;  /**  * @Author: nanjunyu  * @Description:  * @Date: Create in 2018/6/14 16:34  */ @Service public class RedisClientTemplate { private static final Logger log=LoggerFactory.getLogger(RedisClientTemplate.class);   @Autowired  private JedisClusterConfig jedisClusterConfig;   public boolean setToRedis(String key,Object value){ try { String str=jedisClusterConfig.getJedisCluster().set(key, String.valueOf(value));  if("OK".equals(str)) return true; }catch (Exception ex){ log.error("setToRedis:{Key:"+key+",value"+value+"}",ex);  } return false;  } public Object getRedis(String key){ String str=null;  try { str=jedisClusterConfig.getJedisCluster().get(key);  }catch (Exception ex){ log.error("getRedis:{Key:"+key+"}",ex);  } return str;  } }

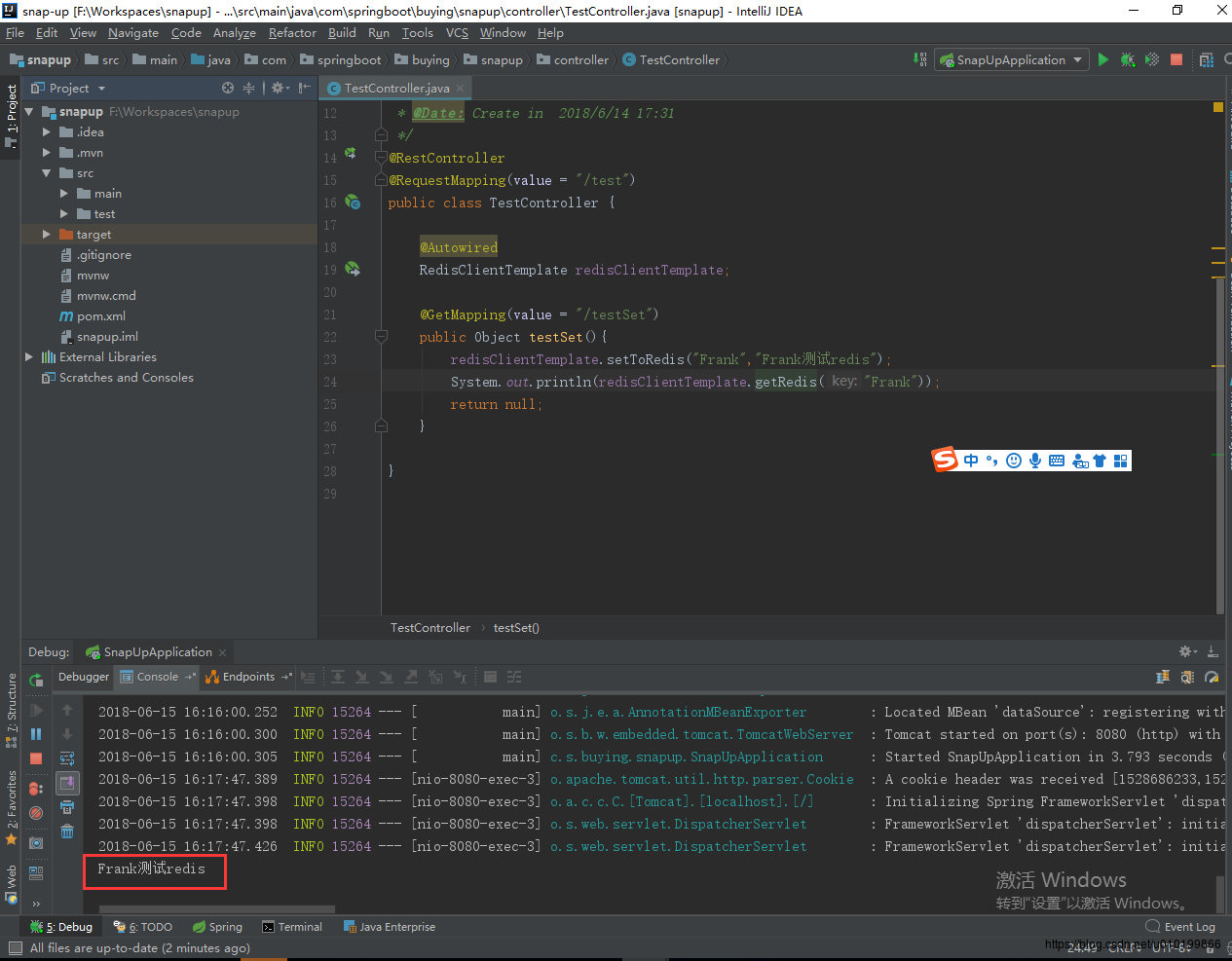

ok到这里我们redis集群搭建好了，代码配置也都弄好了，现在我们创建一个controller见证奇迹吧！

package com.springboot.buying.snapup.controller;  import com.springboot.buying.snapup.utils.redis.RedisClientTemplate; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController;  /**  * @Author: nanjunyu  * @Description:  * @Date: Create in 2018/6/14 17:31  */ @RestController @RequestMapping(value = "/test") public class TestController { @Autowired  RedisClientTemplate redisClientTemplate;   @GetMapping(value = "/testSet") public Object testSet(){ redisClientTemplate.setToRedis("Frank","Frank测试redis");  System.out.println(redisClientTemplate.getRedis("Frank"));  return null;  } }
