2020年新型冠状病毒疫情分析实战

一、 数据爬取：爬取门户网站上的疫情统计数据，要求具体到各个省的地级市的每日的确诊病例的统计人数，并将上述爬取信息导入到本地数据库中。

二、疫情分布图可视化展示：要求展示当前的疫情分布情况。单击各个省可以下钻到各个地市的数据显示。

爬取网站：https://voice.baidu.com/act/newpneumonia/newpneumonia/?from=osari_pc_1

Python(省级总确诊病例爬取)：

import requests import re import xlwt url = 'http://m.look.360.cn/subject/400?sign=360_6aa05217' headers = { "user-agent": "Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/77.0.3865.90 Safari/537.36" } def get_page(url): try: response = requests.get(url, headers=headers) if response.status_code == 200: print('获取网页成功') return response.text else: print('获取网页失败') except Exception as e: print(e) f = xlwt.Workbook(encoding='utf-8') sheet01 = f.add_sheet(u'sheet1', cell_overwrite_ok=True) sheet01.write(0, 0, '省份') # 第一行第一列 sheet01.write(0, 1, '确诊病例') # 第一行第二列 sheet01.write(0, 2, '死亡数量') # 第一行第三列 sheet01.write(0, 3, '痊愈数量') # 第一行第四列 page = get_page("https://voice.baidu.com/act/newpneumonia/newpneumonia/?from=osari_pc_1") items = re.findall('{"confirmed":"(.*?)","died":"(.*?)","crued":"(.*?)".*?"area":"(.*?)"',page,re.S) print(len(items)) for i in range(len(items)): sheet01.write(i + 1, 0, items[i][3].encode('utf-8').decode('unicode_escape')) if len(items[i][0])==0: sheet01.write(i + 1, 1,"0") else: sheet01.write(i + 1, 1,items[i][0]) if len(items[i][1])==0: sheet01.write(i + 1, 2,"0") else: sheet01.write(i + 1, 2,items[i][1]) if len(items[i][2])==0: sheet01.write(i + 1, 3,"0") else: sheet01.write(i + 1, 3,items[i][2]) print("打印完！！！") f.save('Outbreak.xls')

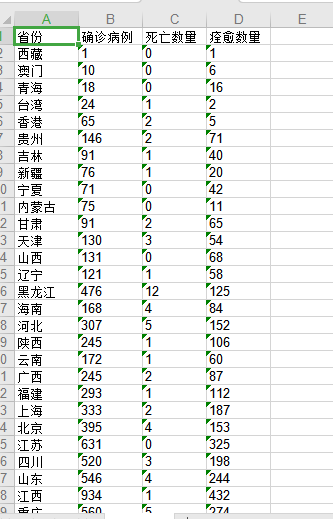

截图：

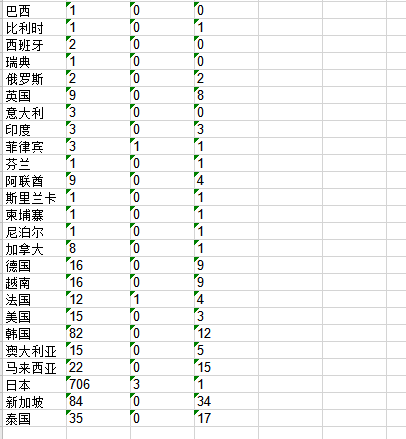

但是爬取结构存在外国病例总数：

不是很多直接删掉就行了。然后开始进行数据可视化。

jsp代码：

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd"> <html> <head> <meta http-equiv="Content-Type" content="text/html; charset=UTF-8"> <title>Insert title here</title> <script src="https://cdn.staticfile.org/echarts/4.3.0/echarts.min.js"></script> <script src="js/jquery-1.5.1.js"></script> <script src="js/china.js"></script> </head> <body> <div id="main" style="width: 1500px;height:600px;"></div> <script type="text/javascript"charset="utf-8"> var statisticsData =[]; var myChart = echarts.init(document.getElementById('main')); ///////// myChart.showLoading(); $.ajax({ type : "post", async : true, //异步请求（同步请求将会锁住浏览器，其他操作须等请求完成才可执行） url : "servlet?method=find", //请求发送到Servlet data : {}, dataType : "json", //返回数据形式为json //7.请求成功后接收数据name+num两组数据 success : function(result) { //result为服务器返回的json对象 if (result) { //8.取出数据存入数组 for (var i = 0; i <result.length; i++) { var statisticsObj = {name:'',value:''}; //因为ECharts里边需要的的数据格式是这样的 statisticsObj.name =result[i].shengfen; statisticsObj.value =result[i].quezhen; //alert( statisticsObj.name); //alert(statisticsObj.value); statisticsData.push(statisticsObj); } //alert(statisticsData); //把拿到的异步数据push进我自己建的数组里 myChart.hideLoading(); //9.覆盖操作-根据数据加载数据图表 optionChinaMap = { tooltip : { trigger: 'item' }, legend: { orient: 'horizontal',//图例的排列方向 textStyle: {color:'#fff'}, x:'left',//图例的位置 y:'20', data:['全国数据'] }, visualMap: {//颜色的设置 dataRange textStyle: {color:'#fff'}, x: 'left', y: 'bottom', splitList: [ {start: 1500},{start: 900, end: 1500}, {start: 310, end: 1000},{start: 200, end: 300}, {start: 50, end: 200},{start: 0, end: 50}, ], // text:['高','低'],// 文本，默认为数值文本 // color: ['#65A2D9', '#E09107', '#A3E00B'] color: ['#5475f5', '#9feaa5', '#3FA7FF','#66E0E3', '#FFDC5E', '#9fb5ea'] }, // roamController: {//控制地图的上下左右放大缩小 // show: true, // x: 'right', // mapTypeControl: { // 'china': true // } // }, series : [ { name: '确诊病例', type: 'map', mapType: 'china', zoom: 1.1, roam: false,//是否开启鼠标缩放和平移漫游 itemStyle:{//地图区域的多边形 图形样式 normal:{//是图形在默认状态下的样式 label:{ show: true, textStyle: {color: "rgb(249, 249, 249)"} } }, emphasis:{//是图形在高亮状态下的样式,比如在鼠标悬浮或者图例联动高亮时 label:{show:true}, } }, top:"100",//组件距离容器的距离 data:statisticsData } ] }; myChart.setOption(optionChinaMap, true); } }, }) </script> </body> </html>

dao层代码：

package com.epidemic.dao; import java.sql.Connection; import java.sql.DriverManager; import java.sql.ResultSet; import java.sql.Statement; import java.util.ArrayList; import java.util.List; import com.epidemic.entity.entity; public class dao { public List<entity> list1(){ List<entity> list =new ArrayList<entity>(); try { // 加载数据库驱动，注册到驱动管理器 Class.forName("com.mysql.jdbc.Driver"); // 数据库连接字符串 String url = "jdbc:mysql://localhost:3306/outbreak?useUnicode=true&characterEncoding=utf-8"; // 数据库用户名 String username = "root"; // 数据库密码 String password = "893225523"; // 创建Connection连接 Connection conn = DriverManager.getConnection(url, username, password); // 添加图书信息的SQL语句 String sql = "select * from sheet1"; // 获取Statement Statement statement = conn.createStatement(); ResultSet resultSet = statement.executeQuery(sql); while (resultSet.next()) { entity book = new entity(); book.setShengfen(resultSet.getString("省份")); book.setQuezhen(resultSet.getString("确诊病例")); book.setDead(resultSet.getString("死亡数量")); book.setCure(resultSet.getString("痊愈数量")); list.add(book); } resultSet.close(); statement.close(); conn.close(); }catch (Exception e) { e.printStackTrace(); } return list; } /// public List<entity> list2(){ List<entity> list =new ArrayList<entity>(); try { // 加载数据库驱动，注册到驱动管理器 Class.forName("com.mysql.jdbc.Driver"); // 数据库连接字符串 String url = "jdbc:mysql://localhost:3306/xinwen?useUnicode=true&characterEncoding=utf-8"; // 数据库用户名 String username = "root"; // 数据库密码 String password = "893225523"; // 创建Connection连接 Connection conn = DriverManager.getConnection(url, username, password); // 添加图书信息的SQL语句 String sql = "select * from sheet1"; // 获取Statement Statement statement = conn.createStatement(); ResultSet resultSet = statement.executeQuery(sql); while (resultSet.next()) { entity book = new entity(); book.setShi(resultSet.getString("省份市")); book.setQuezhen(resultSet.getString("确诊病例")); book.setDead(resultSet.getString("死亡数量")); book.setCure(resultSet.getString("痊愈数量")); list.add(book); } resultSet.close(); statement.close(); conn.close(); }catch (Exception e) { e.printStackTrace(); } return list; } }

servlet层:

package com.epidemic.servlet; import java.io.IOException; import java.util.ArrayList; import java.util.List; import javax.servlet.ServletException; import javax.servlet.annotation.WebServlet; import javax.servlet.http.HttpServlet; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; import javax.servlet.http.HttpSession; import com.epidemic.dao.dao; import com.google.gson.Gson; import com.epidemic.entity.*; /** * Servlet implementation class servlet */ @WebServlet("/servlet") public class servlet extends HttpServlet { private static final long serialVersionUID = 1L; dao dao1=new dao(); /** * @see HttpServlet#HttpServlet() */ public servlet() { super(); // TODO Auto-generated constructor stub } protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { request.setCharacterEncoding("utf-8"); String method=request.getParameter("method"); if("find".equals(method)) { find(request, response); }else if("find2".equals(method)) { find2(request, response); } } private void find(HttpServletRequest request, HttpServletResponse response) throws IOException, ServletException { request.setCharacterEncoding("utf-8"); List<entity> list =new ArrayList<entity>(); HttpSession session=request.getSession(); String buy_nbr=(String) session.getAttribute("userInfo"); entity book = new entity(); List<entity> list2=dao1.list1(); System.out.println(list2.size()); // String buy_nbr=(String) session.getAttribute("userInfo"); // System.out.println(buy_nbr); Gson gson2 = new Gson(); String json = gson2.toJson(list2); System.out.println(json); // System.out.println(json); // System.out.println(json.parse); response.setContentType("text/html;charset=UTF-8"); response.getWriter().write(json); } private void find2(HttpServletRequest request, HttpServletResponse response) throws IOException, ServletException { request.setCharacterEncoding("utf-8"); List<entity> list =new ArrayList<entity>(); HttpSession session=request.getSession(); String buy_nbr=(String) session.getAttribute("userInfo"); entity book = new entity(); List<entity> list2=dao1.list2(); System.out.println(list2.size()); // String buy_nbr=(String) session.getAttribute("userInfo"); // System.out.println(buy_nbr); Gson gson2 = new Gson(); String json = gson2.toJson(list2); System.out.println(json); // System.out.println(json); // System.out.println(json.parse); response.setContentType("text/html;charset=UTF-8"); response.getWriter().write(json); } }

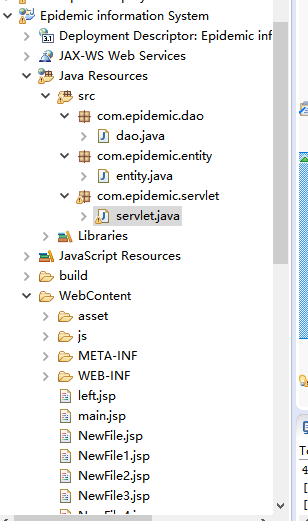

项目结构：

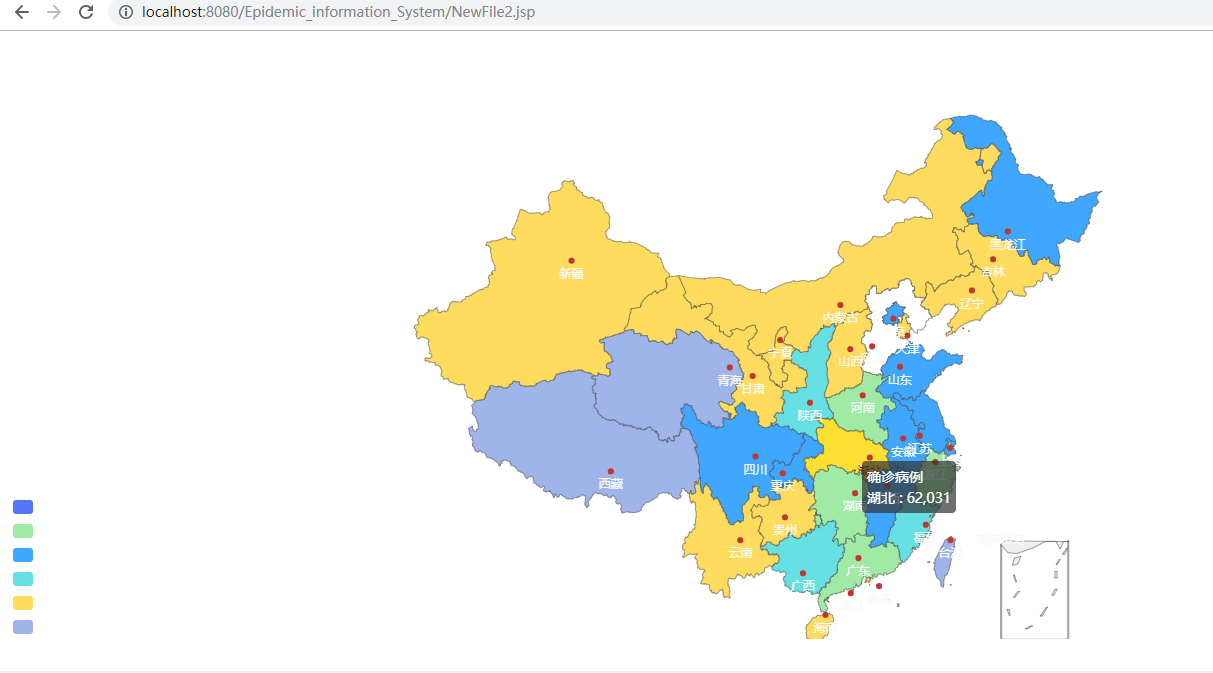

运行结果：

然后我们开始制作地图的下钻，显示各个省的市的确诊病例：

python源代码：

import requests import re import xlwt url = 'http://m.look.360.cn/subject/400?sign=360_6aa05217' headers = { "user-agent": "Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/77.0.3865.90 Safari/537.36" } def get_page(url): try: response = requests.get(url, headers=headers) if response.status_code == 200: print('获取网页成功') return response.text else: print('获取网页失败') except Exception as e: print(e) f = xlwt.Workbook(encoding='utf-8') sheet01 = f.add_sheet(u'sheet1', cell_overwrite_ok=True) sheet01.write(0, 0, '省份') # 第一行第一列 sheet01.write(0, 1, '确诊病例') # 第一行第二列 sheet01.write(0, 2, '死亡数量') # 第一行第三列 sheet01.write(0, 3, '痊愈数量') # 第一行第四列 page = get_page("https://voice.baidu.com/act/newpneumonia/newpneumonia/?from=osari_pc_1") items = re.findall('{"city":"(.*?)","confirmed":"(.*?)","died":"(.*?)","crued":"(.*?)",',page,re.S) print(len(items)) print(items) for i in range(len(items)): sheet01.write(i + 1, 0, items[i][0].encode('utf-8').decode('unicode_escape')) if len(items[i][1])==0: sheet01.write(i + 1, 1,"0") else: sheet01.write(i + 1, 1,items[i][1]) if len(items[i][2])==0: sheet01.write(i + 1, 2,"0") else: sheet01.write(i + 1, 2,items[i][2]) if len(items[i][3])==0: sheet01.write(i + 1, 3,"0") else: sheet01.write(i + 1, 3,items[i][3]) print("打印完！！！") f.save('Outbreak2.xls')

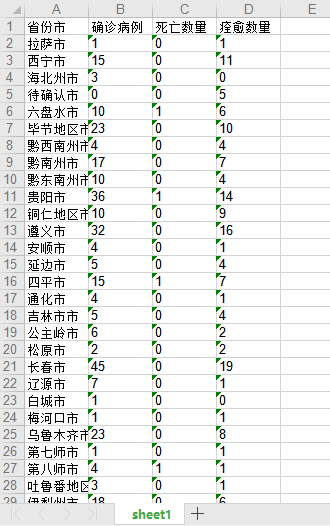

爬取结果：

在这里我在地区市后面统一加了个“市”字，为了方便运用echarts制作地图，但是还是要修改很多市地区的名称，比如数据库里“邢台”运行会没有结果，必去要改成“邢台市”，我这里有一份sql文件，有需要的联系Q：893225523。

之后开始实现可视化：

jsp代码：

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd"> <html> <head> <meta http-equiv="Content-Type" content="text/html; charset=UTF-8"> <title>Insert title here</title> <script src="https://cdn.staticfile.org/echarts/4.3.0/echarts.min.js"></script> <script src="js/jquery-1.5.1.js"></script> <script src="js/china.js"></script> <script src="js/echarts-all.js"></script> </head> <body> <div id="main" style="width: 1500px;height:600px;"></div> <script type="text/javascript"> var statisticsData =[]; var myChart = echarts.init(document.getElementById('main')); myChart.showLoading(); $.ajax({ type : "post", async : true, //异步请求（同步请求将会锁住浏览器，其他操作须等请求完成才可执行） url : "servlet?method=find2", //请求发送到Servlet data : {}, dataType : "json", //返回数据形式为json //7.请求成功后接收数据name+num两组数据 success : function(result) { //result为服务器返回的json对象 if (result) { //8.取出数据存入数组 for (var i = 0; i <result.length; i++) { var statisticsObj = {name:'',value:''}; //因为ECharts里边需要的的数据格式是这样的 statisticsObj.name =result[i].shi; statisticsObj.value =result[i].quezhen; //alert(statisticsObj.name); //alert(statisticsObj.value); statisticsData.push(statisticsObj); } //alert(statisticsData); //把拿到的异步数据push进我自己建的数组里 myChart.hideLoading(); //9.覆盖操作-根据数据加载数据图表 option = { tooltip : { trigger: 'item' }, toolbox: { show : true, orient: 'vertical', x:'right', y:'center', feature : { mark : {show: true}, dataView : {show: true, readOnly: false} } }, series : [ { tooltip: { trigger: 'item', formatter: '{b}' }, name: '选择器', type: 'map', mapType: 'china', mapLocation: { x: 'left', y: 'top', width: '30%' }, roam: true, selectedMode : 'single', itemStyle:{ //normal:{label:{show:true}}, emphasis:{label:{show:true}} }, data:[ {name: '北京', selected:false}, {name: '天津', selected:false}, {name: '上海', selected:false}, {name: '重庆', selected:false}, {name: '河北', selected:false}, {name: '河南', selected:false}, {name: '云南', selected:false}, {name: '辽宁', selected:false}, {name: '黑龙江', selected:false}, {name: '湖南', selected:false}, {name: '安徽', selected:false}, {name: '山东', selected:false}, {name: '新疆', selected:false}, {name: '江苏', selected:false}, {name: '浙江', selected:false}, {name: '江西', selected:false}, {name: '湖北', selected:false}, {name: '广西', selected:false}, {name: '甘肃', selected:false}, {name: '山西', selected:false}, {name: '内蒙古', selected:false}, {name: '陕西', selected:false}, {name: '吉林', selected:false}, {name: '福建', selected:false}, {name: '贵州', selected:false}, {name: '广东', selected:false}, {name: '青海', selected:false}, {name: '西藏', selected:false}, {name: '四川', selected:false}, {name: '宁夏', selected:false}, {name: '海南', selected:false}, {name: '台湾', selected:false}, {name: '香港', selected:false}, {name: '澳门', selected:false} ] } ], animation: false }; var ecConfig = echarts.config; myChart.on(ecConfig.EVENT.MAP_SELECTED, function (param){ var selected = param.selected; var selectedProvince; var name; for (var i = 0, l = option.series[0].data.length; i < l; i++) { name = option.series[0].data[i].name; option.series[0].data[i].selected = selected[name]; if (selected[name]) { selectedProvince = name; } } if (typeof selectedProvince == 'undefined') { option.series.splice(1); option.legend = null; option.dataRange = null; myChart.setOption(option, true); return; } option.series[1] = { name: '确诊病例', type: 'map', mapType: selectedProvince, itemStyle:{ normal:{label:{show:true}}, emphasis:{label:{show:true}} }, mapLocation: { x: '35%' }, roam: true, data:statisticsData }; option.legend = { x:'right', data:['随机数据'] }; option.dataRange = { orient: 'horizontal', x: 'right', min: 0, max: 1000, color:['orange','yellow'], text:['高','低'], // 文本，默认为数值文本 splitNumber:0 }; myChart.setOption(option, true); }) myChart.setOption(option, true); } }, }) </script> </body> </html>

dao层、servlet层就上面的已经给出。

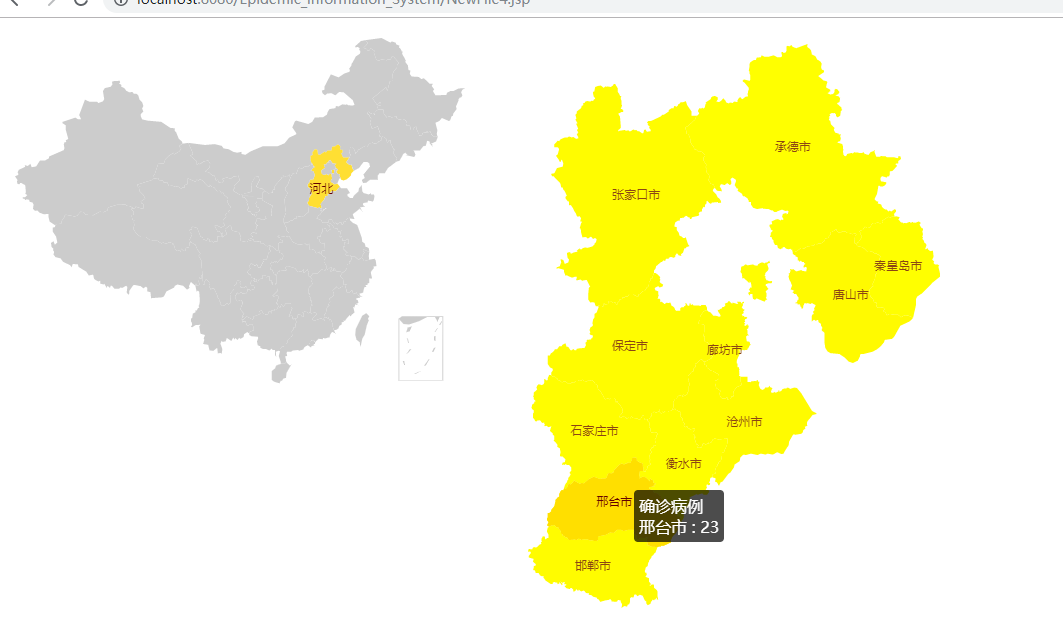

运行结果：
