全国疫情统计可视化地图

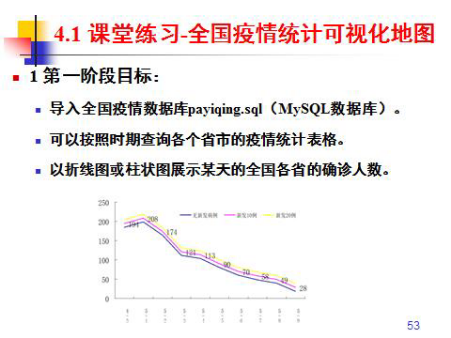

目标：

这周我们学习了百度图表Echars的使用，第一阶段利用数据库数据生成统计图，第二三阶段利用数据生成全国确诊人数分布图。主要实现方法如下：

1.连接数据库，读取数据返回一个List，servlet调用这个函数，以json格式传回给前端页面。

2.前端页面接收数据

第一阶段代码：

Dao：

public class DataDao {// public List<Data> search(String beginyear, String endyear) throws SQLException {// QueryRunner runner = new QueryRunner(DataSourceUtils.getDataSource());// String sql = “select * from info where date >= ? and date <= ?”;// return runner.query(sql, new BeanListHandler<Data>(Data.class),beginyear,endyear);// }//}

public List<Data> search1(String beginyear,String endyear){

int num=0;

List<Data>list=new ArrayList<Data>();

Connection con=null;

java.sql.Statement psts=null;

ResultSet rs=null;

try {

con=DataDB.getCon();

String sql=”select * from info where Date between ‘”+beginyear+”‘ and ‘”+endyear+”‘”;

System.out.print(sql);

psts=con.createStatement();

rs=psts.executeQuery(sql);

while(rs.next()){

String id=rs.getString(“Id”);

String date=rs.getString(“Date”);

String province=rs.getString(“Province”);

String city=rs.getString(“City”);

String confirmed_num=rs.getString(“Confirmed_num”);

String yisi_num=rs.getString(“Yisi_num”);

String cured_num=rs.getString(“Cured_num”);

String dead_num=rs.getString(“Dead_num”);

Data data=new Data(id,date,province,city,confirmed_num,yisi_num,cured_num,dead_num);

list.add(data);

}

} catch (SQLException e) {

e.printStackTrace();

}

return list;

}

servlet：

protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

// TODO Auto-generated method stub

//response.getWriter().append(“Served at: “).append(request.getContextPath());

request.setCharacterEncoding(“utf-8”);

response.setContentType(“text/html;charset=utf-8”);

String beginyearString=request.getParameter(“beginyear”);

String endyearString=request.getParameter(“endyear”);

List<Data>list=new ArrayList<Data>();

DataDao dataDao=new DataDao();

list=dataDao.search1(beginyearString, endyearString);

if (list!=null) {

System.out.print(“查询成功“);

request.setAttribute(“list”, list);

request.getRequestDispatcher(“show.jsp”).forward(request, response);

}

show.jsp（需要一个search页面按照前后两个时间搜索，在这里不展出)

<%@ page language=”java” contentType=”text/html; charse=tUTF-8″

pageEncoding=”UTF-8″%>

<%@page import=”java.util.List”%>

<%@page import=”echart.Data”%>

<%@taglib uri=”http://java.sun.com/jsp/jstl/core” prefix=”c” %><!DOCTYPE html><html><head><meta charset=”UTF-8″><title>信息显示页面</title></head>

<!– 引入 echarts.js –>

</script>

</head><body>

<% request.setCharacterEncoding(“utf-8”);

List <Data> provinces =(List<Data>) request.getAttribute(“list”); //接收后台传过来的数据集合int i=0;%><div align=”center”>

<div id=”main” align=”center” style=”width: 750px;height:430px;” >//首先为统计图规定一个容器

var myChart = echarts.init(document.getElementById(‘main’));

var option = {

dataset: {

source: [

[ ‘省份‘,’确诊人数‘],

//获取request域中的数据

if(provinces!=null){

for(Data province:provinces){i++;

[‘<%=province.getProvince()%>’,'<%=province.getConfirmed_num()%>’],//将list中的数据拼接成json格式作为要显示在统计图中的数据

if(i>33)break;

}

]

grid: {containLabel: true},

xAxis: {type: ‘category’},

yAxis: {},

series: [

{

type: ‘bar’,//此处决定了统计图类型，bar：柱状图，line：折线图

encode: {

// 将 “amount” 列映射到 X 轴。 x: ‘省份‘,

// 将 “product” 列映射到 Y 轴。 y: ‘确诊人数‘

}

}]

};

// 使用刚指定的配置项和数据显示图表。 myChart.setOption(option);

</script>

</div>

<td>${list.province }</td>

<td>${list.confirmed_num }</td>

</body></html>

第二阶段代码：

Dao：

public static List search2(String data) {

int num=0;

List<Data>list=new ArrayList<Data>();

Connection con=null;

java.sql.Statement psts=null;

ResultSet rs=null;

try {

con=DataDB.getCon();

String sql=”select * from info1 where Date ='”+data+”‘”;

System.out.print(sql);

psts=con.createStatement();

rs=psts.executeQuery(sql);

while(rs.next()){

String id=rs.getString(“Id”);

String date=rs.getString(“Date”);

String province=rs.getString(“Province”);

String city=rs.getString(“City”);

String confirmed_num=rs.getString(“Confirmed_num”);

String yisi_num=rs.getString(“Yisi_num”);

String cured_num=rs.getString(“Cured_num”);

String dead_num=rs.getString(“Dead_num”);

Data data1=new Data(id,date,province,city,confirmed_num,yisi_num,cured_num,dead_num);

list.add(data1);

}

} catch (SQLException e) {

e.printStackTrace();

}

return list;

}

servlet：

protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

request.setCharacterEncoding(“UTF-8”);

response.setCharacterEncoding(“UTF-8”);

String dataString=request.getParameter(“time”);

List<Data>list=new ArrayList<Data>();

DataDao dataDao=new DataDao();

list=dataDao.search2(dataString);

if(list!=null) {

Gson gson = new Gson();

String json = gson.toJson(list);

System.out.println(json);

response.getWriter().write(json);//阶段一是将list传回给前台，在前台进行拼接，阶段二直接将json格式的数据传回给前台

}

map.<!DOCTYPE html><html style=”height: 100%”>

<head><meta charset=”UTF-8″><base><title>地图阶段二</title><script src=”js/jquery-1.12.3.min.js” type=”text/javascript”></script><script type=”text/javascript” src=”js/echarts.js”></script><script type=”text/javascript” src=”js/china.js”></script></head><body style=”height: 100%; margin: 0″>

日期 <input type=”text” name=”time”

id=”time” placeholder=”yyyy-MM-dd hh:mm:ss”> <input

type=”button” value=”查询“ onclick=”tu()”>//为查询按钮绑定了一个函数，实现了利用ajax异步读取交换数据

</div>

function randomData() {

return Math.round(Math.random() * 500);

}

var dt;

var mydata1 = new Array(0);

function tu() {

time = $(“#time”).val();

//alert(time.substring(0, 2)); $.ajax({

url : “InfoServlet”,//要传送的servlet地址，此处即为传给InfoServlet

async : true,

type : “POST”,

data : {

“time” : time//要穿送的数据，为jason格式

success : function(data) {//执行成功的回调函数，此处即为显示地图

dt = data;

for (var i = 0; i < 33; i++) {

var d = {

};

d[“name”] = dt[i].province;//.substring(0, 2); d[“value”] = dt[i].confirmed_num;

d[“yisi_num”] = dt[i].yisi_num;

d[“cured_num”] = dt[i].cured_num;

d[“dead_num”] = dt[i].dead_num;

mydata1.push(d);

}//接收后台的数据

//var mdata = JSON.stringify(mydata1);

var optionMap = {

backgroundColor : ‘#FFFFFF’,

title : {

text : ‘全国地图大数据‘,

subtext : ”,

x : ‘center’

},
//echart提示框内容：

tooltip : {

formatter : function(params) {

return params.name + ‘<br/>’ + ‘确诊人数 : ‘

+ params.value + ‘<br/>’ + ‘死亡人数 : ‘

+ params[‘data’].dead_num + ‘<br/>’ + ‘治愈人数 : ‘

+ params[‘data’].cured_num + ‘<br/>’+ ‘疑似患者人数 : ‘

+ params[‘data’].yisi_num;

}//数据格式化 },

//左侧小导航图标 visualMap : {

min : 0,

max : 35000,

text : [ ‘多‘, ‘少‘ ],

realtime : false,

calculable : true,

inRange : {

color : [ ‘lightskyblue’, ‘yellow’, ‘orangered’ ]

}

//配置属性 series : [ {

type : ‘map’,

mapType : ‘china’,

label : {

show : true

data : mydata1,

nameMap : {

‘南海诸岛‘ : ‘南海诸岛‘,

‘北京‘ : ‘北京市‘,

‘天津‘ : ‘天津市‘,

‘上海‘ : ‘上海市‘,

‘重庆‘ : ‘重庆市‘,

‘河北‘ : ‘河北省‘,

‘河南‘ : ‘河南省‘,

‘云南‘ : ‘云南省‘,

‘辽宁‘ : ‘辽宁省‘,

‘黑龙江‘ : ‘黑龙江省‘,

‘湖南‘ : ‘湖南省‘,

‘安徽‘ : ‘安徽省‘,

‘山东‘ : ‘山东省‘,

‘新疆‘ : ‘新疆维吾尔自治区‘,

‘江苏‘ : ‘江苏省‘,

‘浙江‘ : ‘浙江省‘,

‘江西‘ : ‘江西省‘,

‘湖北‘ : ‘湖北省‘,

‘广西‘ : ‘广西壮族自治区‘,

‘甘肃‘ : ‘甘肃省‘,

‘山西‘ : ‘山西省‘,

‘内蒙古‘ : “内蒙古自治区“,

‘陕西‘ : ‘陕西省‘,

‘吉林‘ : ‘吉林省‘,

‘福建‘ : ‘福建省‘,

‘贵州‘ : ‘贵州省‘,

‘广东‘ : ‘广东省‘,

‘青海‘ : ‘青海省‘,

‘西藏‘ : ‘西藏自治区‘,

‘四川‘ : ‘四川省‘,

‘宁夏‘ : ‘宁夏回族自治区‘,

‘海南‘ : ‘海南省‘,

‘台湾‘ : ‘台湾‘,

‘香港‘ : ‘香港‘,

‘澳门‘ : ‘澳门‘

}

} ]

};

//初始化echarts实例

var myChart = echarts.init(document.getElementById(‘main’));

//使用制定的配置项和数据显示图表 myChart.setOption(optionMap);

error : function() {

alert(“请求失败“);

dataType : “json”

});

}</script></html>

阶段三代码：

根据题目要求，点击全国省级地图后，要能进行市级地图展示并能够显示市级确诊人数。

实现过程，在阶段二的前端代码中为地图添加点击的监听函数，能够实现点击后利用servlet向下一个页面跳转

跳转后加载市级地图，然后利用ajax实现提示框市级信息的展示。

Dao：

public static List search3(String data,String province) {

int num=0;

List<Data>list=new ArrayList<Data>();

Connection con=null;

java.sql.Statement psts=null;

ResultSet rs=null;

try {

con=DataDB.getCon();

String sql=”select * from info1 where Date ='”+data+”‘ and Province ='”+province+”‘”;

System.out.print(sql);

psts=con.createStatement();

rs=psts.executeQuery(sql);

while(rs.next()){

String id=rs.getString(“Id”);

String date=rs.getString(“Date”);

String city=rs.getString(“City”);

String confirmed_num=rs.getString(“Confirmed_num”);

String yisi_num=rs.getString(“Yisi_num”);

String cured_num=rs.getString(“Cured_num”);

String dead_num=rs.getString(“Dead_num”);

Data city2=new Data(id,date,province,city,confirmed_num,yisi_num,cured_num,dead_num);

list.add(city2);

}

} catch (SQLException e) {

e.printStackTrace();

}

return list;

}

servlet1：

protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

// TODO Auto-generated method stub

//response.getWriter().append(“Served at: “).append(request.getContextPath());

request.setCharacterEncoding(“utf-8”);

response.setContentType(“text/html;charset=utf-8”);

String time=request.getParameter(“time”);

String provinceString=request.getParameter(“province”);

request.setAttribute(“province”, provinceString);

System.out.print(“成功“);

request.getRequestDispatcher(“littlemap.jsp”).forward(request, response);

}

servlet2：

protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

// TODO Auto-generated method stub

//response.getWriter().append(“Served at: “).append(request.getContextPath());

request.setCharacterEncoding(“UTF-8”);

response.setCharacterEncoding(“UTF-8”);

String dataString=”2020-02-12 10:14:15″;

String province = request.getParameter(“province”);

List<Data>list=new ArrayList<Data>();

List<Data>listcityCities=new ArrayList<Data>();

DataDao dataDao=new DataDao();

list=dataDao.search3(dataString,province);

for(int i=0;i<list.size();i++) {

Data data=new Data();

data.setCity(list.get(i).getCity());

data.setConfirmed_num(list.get(i).getConfirmed_num());

listcityCities.add(data);

}

Gson gson = new Gson();

String json = gson.toJson(listcityCities);

System.out.println(json);

response.getWriter().write(json);

System.out.println();

}

map1.html

<!DOCTYPE html><html style=”height: 100%”>

日期 <input type=”text” name=”time”

id=”time” placeholder=”yyyy-MM-dd hh:mm:ss”> <input

type=”button” value=”查询“ onclick=”tu()”>

</div>

function randomData() {

return Math.round(Math.random() * 500);

}

var dt;

var mydata1 = new Array(0);

function tu() {

time = $(“#time”).val();

//alert(time.substring(0, 2)); $.ajax({

url : “InfoServlet”,

async : true,

type : “POST”,

data : {

“time” : time

success : function(data) {

dt = data;

for (var i = 0; i < 33; i++) {

var d = {

};

d[“name”] = dt[i].province;//.substring(0, 2); d[“value”] = dt[i].confirmed_num;

d[“yisi_num”] = dt[i].yisi_num;

d[“cured_num”] = dt[i].cured_num;

d[“dead_num”] = dt[i].dead_num;

mydata1.push(d);

}

//var mdata = JSON.stringify(mydata1);

var optionMap = {

backgroundColor : ‘#FFFFFF’,

title : {

text : ‘全国地图大数据‘,

subtext : ”,

x : ‘center’

tooltip : {

formatter : function(params) {

return params.name + ‘<br/>’ + ‘确诊人数 : ‘

+ params.value + ‘<br/>’ + ‘死亡人数 : ‘

+ params[‘data’].dead_num + ‘<br/>’ + ‘治愈人数 : ‘

+ params[‘data’].cured_num + ‘<br/>’+ ‘疑似患者人数 : ‘

+ params[‘data’].yisi_num;

}//数据格式化 },

//左侧小导航图标 visualMap : {

min : 0,

max : 35000,

text : [ ‘多‘, ‘少‘ ],

realtime : false,

calculable : true,

inRange : {

color : [ ‘lightskyblue’, ‘yellow’, ‘orangered’ ]

}

//配置属性 series : [ {

type : ‘map’,

mapType : ‘china’,

label : {

show : true

data : mydata1,

nameMap : {

‘南海诸岛‘ : ‘南海诸岛‘,

‘北京‘ : ‘北京市‘,

‘天津‘ : ‘天津市‘,

‘上海‘ : ‘上海市‘,

‘重庆‘ : ‘重庆市‘,

‘河北‘ : ‘河北省‘,

‘河南‘ : ‘河南省‘,

‘云南‘ : ‘云南省‘,

‘辽宁‘ : ‘辽宁省‘,

‘黑龙江‘ : ‘黑龙江省‘,

‘湖南‘ : ‘湖南省‘,

‘安徽‘ : ‘安徽省‘,

‘山东‘ : ‘山东省‘,

‘新疆‘ : ‘新疆维吾尔自治区‘,

‘江苏‘ : ‘江苏省‘,

‘浙江‘ : ‘浙江省‘,

‘江西‘ : ‘江西省‘,

‘湖北‘ : ‘湖北省‘,

‘广西‘ : ‘广西壮族自治区‘,

‘甘肃‘ : ‘甘肃省‘,

‘山西‘ : ‘山西省‘,

‘内蒙古‘ : “内蒙古自治区“,

‘陕西‘ : ‘陕西省‘,

‘吉林‘ : ‘吉林省‘,

‘福建‘ : ‘福建省‘,

‘贵州‘ : ‘贵州省‘,

‘广东‘ : ‘广东省‘,

‘青海‘ : ‘青海省‘,

‘西藏‘ : ‘西藏自治区‘,

‘四川‘ : ‘四川省‘,

‘宁夏‘ : ‘宁夏回族自治区‘,

‘海南‘ : ‘海南省‘,

‘台湾‘ : ‘台湾‘,

‘香港‘ : ‘香港‘,

‘澳门‘ : ‘澳门‘

}

} ]

}；

});

//使用制定的配置项和数据显示图表 myChart.setOption(optionMap);

error : function() {

alert(“请求失败“);

dataType : “json”

});

}</script></html>

littlemap.jsp

<%@ page language=”java” contentType=”text/html; charset=UTF-8″

pageEncoding=”UTF-8″%><!DOCTYPE html><html><head><meta charset=”UTF-8″><title>Insert title here</title><script src=”js/jquery-1.12.3.min.js” type=”text/javascript”></script><script type=”text/javascript” src=”js/echarts.js”></script><script type=”text/javascript” src=”js/china.js”></script></head><body>

var myChart = echarts.init(document.getElementById(‘main’));//myChart.showLoading();var province = “${province}”;//var list = “${list}”;

$.get(“mapjson/”+ province +”.json”, function (geoJson) {

myChart.hideLoading();

echarts.registerMap(province, geoJson);

myChart.setOption(option = {

title: {

text: province + ‘地区疫情情况‘,

tooltip: {

trigger: ‘item’,

formatter: ‘{b}<br/>{c}人确诊‘

toolbox: {

show: true,

orient: ‘vertical’,

left: ‘right’,

top: ‘center’,

feature: {

dataView: {readOnly: false},

restore: {},

saveAsImage: {}

}

visualMap: {

min: 0,

max: 50000,

text: [‘High’, ‘Low’],

inRange: {

color: [‘lightskyblue’, ‘yellow’, ‘orangered’]

}

]

});

$.ajax({

url:”servlet2″,

async:true,

type:”POST”,

data:{“province”:province},

success:function(data){

alert(data.length);

alert(data.city);

var mydata1 = new Array(0);

for(var i=0;i<data.length;i++){

var c = {};

c[“name”] = data[i].city+’市‘;

c[“value”] = data[i].confirmed_num;

mydata1.push(c);

}

alert(mydata1.size);

myChart.setOption({ //加载数据图表 series: [{

data: mydata1

}]

});

error:function(){

alert(“请求失败“);

dataType:”json”

});

</script></body></html>

原文链接：https://www.cnblogs.com/zl00/p/13088162.html

原创文章，作者：优速盾-小U，如若转载，请注明出处：https://www.cdnb.net/bbs/archives/2782

全国疫情统计可视化地图

相关推荐

发表回复
